- Tag추가
- sementic Tag
- form
- Javascript Library
- 미디어
- audio ←옛날에는 embed +active-x / flash
- video
- canvas : 자바스크립트로 그림 그려줌
- svg : svg라는 xml 태그를 통해서 그림을 그려줌
1. HTML5 수업 세팅
HTML5 Video
브라우저마다 지원하는 동영상 종류가 다름
**스트리밍이나 인터넷 방송은 다른 방식을 사용
2
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>Insert title here</title>
</head>
<body>
<!-- HTML5 video태그 -->
<video width='320' height='240' controls="controls">
<!-- 브라우저 비디오지원 선택사항 -->
<source src="./video/movie.mp4" type='video/mp4'>
<source src="./video/movie.ogg" type='video/ogg'>
Your browser does not support the video tag.
</video>
</body>
</html>
3
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>Insert title here</title>
<style type="text/css">
.button {
-moz-box-shadow:inset 0px 1px 0px 0px #fce2c1;
-webkit-box-shadow:inset 0px 1px 0px 0px #fce2c1;
box-shadow:inset 0px 1px 0px 0px #fce2c1;
background:-webkit-gradient( linear, left top, left bottom, color-stop(0.05, #ffc477), color-stop(1, #fb9e25) );
background:-moz-linear-gradient( center top, #ffc477 5%, #fb9e25 100% );
filter:progid:DXImageTransform.Microsoft.gradient(startColorstr='#ffc477', endColorstr='#fb9e25');
background-color:#ffc477;
-webkit-border-top-left-radius:20px;
-moz-border-radius-topleft:20px;
border-top-left-radius:20px;
-webkit-border-top-right-radius:20px;
-moz-border-radius-topright:20px;
border-top-right-radius:20px;
-webkit-border-bottom-right-radius:20px;
-moz-border-radius-bottomright:20px;
border-bottom-right-radius:20px;
-webkit-border-bottom-left-radius:20px;
-moz-border-radius-bottomleft:20px;
border-bottom-left-radius:20px;
text-indent:0;
border:1px solid #eeb44f;
display:inline-block;
color:#ffffff;
font-family:Arial;
font-size:15px;
font-weight:bold;
font-style:normal;
height:50px;
line-height:50px;
width:100px;
text-decoration:none;
text-align:center;
text-shadow:1px 1px 0px #cc9f52;
}
.button:hover {
background:-webkit-gradient( linear, left top, left bottom, color-stop(0.05, #fb9e25), color-stop(1, #ffc477) );
background:-moz-linear-gradient( center top, #fb9e25 5%, #ffc477 100% );
filter:progid:DXImageTransform.Microsoft.gradient(startColorstr='#fb9e25', endColorstr='#ffc477');
background-color:#fb9e25;
}.button:active {
position:relative;
top:1px;
}</style>
/* This button was generated using CSSButtonGenerator.com */
<script type="text/javascript">
window.onload= function(){
//자바스크립트로 비디오 제어
var myVideo = document.getElementById('video');
document.getElementById('btn1').onclick = function(){
if(myVideo.paused){ //플레이와 일시정지 버튼
myVideo.play();
}else{
myVideo.pause();
}
}
}
</script>
</head>
<body>
<!-- HTML5 video태그 -->
<button id='btn1' class='button'>play/pause</button><br><br>
<video id='video' width='320' height='240'>
<source src="./video/mov_bbb.mp4" type='video/mp4'>
<source src="./video/mov_bbb.ogg" type='video/ogg'>
Your browser does not support the video tag.
</video>
</body>
</html>
4
브라우저마다 지원하는 오디오 방식이 다름
5. SVG-Scalable Vector Graphics
그림크기가 확대되어도 이미지가 깨지지 않음
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>Insert title here</title>
</head>
<body>

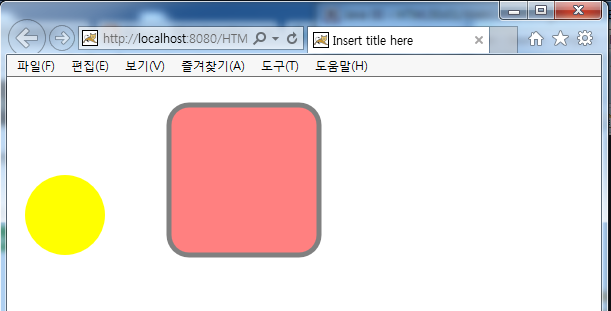

<!-- svg 원그리기-->
<svg width='100' height='100'>
<circle cx='50' cy='50' r='40' fill='yellow' />
</svg>
<!-- 사각형 라운드 그리기 -->
<svg width="400" height="180">
<rect x="50" y="20" rx="20" ry="20" width="150" height="150" style="fill:red;stroke:black;stroke-width:5;opacity:0.5">
Sorry, your browser does not support inline SVG.
</svg>
</body>
</html>
6
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>Insert title here</title>
</head>
<body>
<!-- svg 다각형-->
<svg height='210' width='500'>
<polygon points="100,10 40,198 190,78 10,78 160,198" style="fill:lime;stroke:purple;stroke-width:5;fill-rule:nonzero;"/>
</svg>
</body>
</html>
7
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>Insert title here</title>
</head>
<body>
<!-- svg path 수학도형표시-->
<svg height="400" width="450">
<path id="lineAB" d="M 100 350 l 150 -300" stroke="red" stroke-width="3" fill="none" />
<path id="lineBC" d="M 250 50 l 150 300" stroke="red" stroke-width="3" fill="none" />
<path d="M 175 200 l 150 0" stroke="green" stroke-width="3" fill="none" />
<path d="M 100 350 q 150 -300 300 0" stroke="blue" stroke-width="5" fill="none" />
<!-- Mark relevant points -->
<g stroke="black" stroke-width="3" fill="black">
<circle id="pointA" cx="100" cy="350" r="3" />
<circle id="pointB" cx="250" cy="50" r="3" />
<circle id="pointC" cx="400" cy="350" r="3" />
</g>
<!-- Label the points -->
<g font-size="30" font-family="sans-serif" fill="black" stroke="none" text-anchor="middle">
<text x="100" y="350" dx="-30">A</text>
<text x="250" y="50" dy="-10">B</text>
<text x="400" y="350" dx="30">C</text>
</g>
Sorry, your browser does not support inline SVG.
</svg>
</body>
</html>
svg로 차트를 그림 --http://www.highcharts.com/ 무료 https://d3js.org/

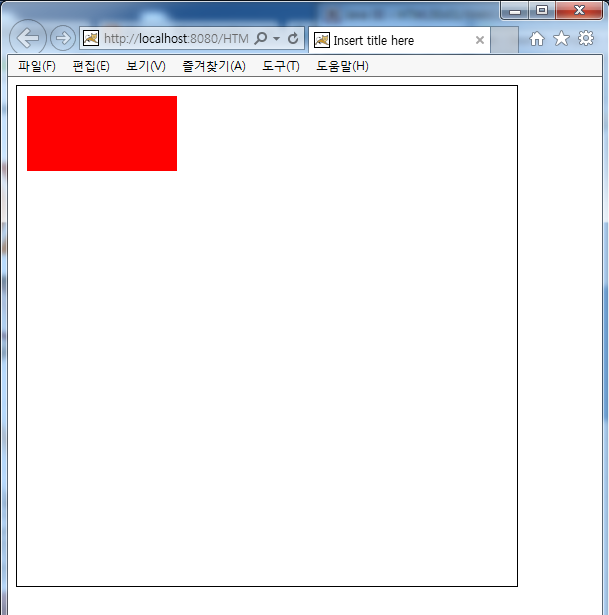

8. canvas
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>Insert title here</title>
<style type="text/css">
#canvas { border: 1px solid black; }
</style>
<script type="text/javascript">
window.onload = function(){
var canvas = document.getElementById('canvas');
var ctx = canvas.getContext('2d');
ctx.fillStyle = '#ff0000';
ctx.fillRect(10,10,150,75);
}
</script>
</head>
<body>
<!-- canvas 그림그리기 javascript 이용-->
<canvas id='canvas' width='500' height='500'></canvas>
</body>
</html>
9
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>Insert title here</title>
<style type="text/css">
#canvas { border:1px solid #d3d3d3; }
</style>
<script type="text/javascript">
window.onload = function(){
var canvas = document.getElementById("canvas");
var ctx = canvas.getContext("2d");
//canvas에 글씨 넣기
ctx.font = '60px Comic Sans Ms';
ctx.fillStyle = 'red';
ctx.textAlign = 'center';
ctx.fillText('Hello World', canvas.width/2, canvas.height/2);
}
</script>
</head>
<body>
<!-- canvas 그림그리기 javascript 이용-->
<canvas id="canvas" width="500" height="200"></canvas>
</body>
</html>
10
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>Insert title here</title>
<style type="text/css">
#canvas { border:1px solid black; }
</style>
<script type="text/javascript">
window.onload = function(){
var canvas = document.getElementById("canvas");
var ctx = canvas.getContext("2d");

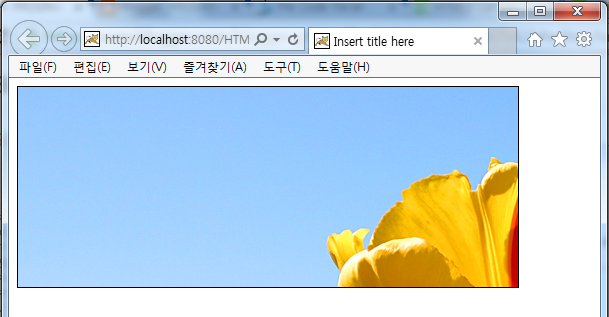

//canvas에 이미지 넣기
var image = new Image();
image.src = './images/Tulips.jpg';
image.onload = function(){
ctx.drawImage(image,0,0);
}
}
</script>
</head>
<body>
<!-- canvas 그림그리기 javascript 이용-->
<canvas id="canvas" width="500" height="200"></canvas>
</body>
</html>
11
<!DOCTYPE html>
<html lang="ko">
<head>
<meta charset="UTF-8">
<title>Insert title here</title>
<style type="text/css">
div{
font-size: 30px;
border: 1px solid blue;
padding: 10px;
}
</style>
<script type="text/javascript">
var context;
var dig;
var dialImg = new Image();
var hourImg = new Image();
var minImg = new Image();
var secImg = new Image();
dialImg.src = "images/dial.png";
hourImg.src = "images/pin_3.png";
minImg.src = "images/pin_2.png";
secImg.src = "images/pin_1.png";
var rHour = 0.0, rMin=0.0, rSec=0.0;
var centerX, centerY;
window.onload=function(){
var canvas=document.getElementById('myCanvas');
dig = document.getElementById('digital');
context = canvas.getContext('2d');
centerX=300/2;
centerY=300/2;
setInterval(showTime, 50);
}
function drawCanvas(){
context.drawImage(dialImg, centerX-150, centerY-150, 300, 300);
context.save();
context.translate(centerX, centerY);
context.rotate(rSec);
context.drawImage(secImg, -10, -130, 20, 130);
context.restore();
context.save();
context.translate(centerX, centerY);
context.rotate(rMin);
context.drawImage(minImg, -10, -130, 20, 130);
context.restore();
context.save();
context.translate(centerX, centereY);
context.rotate(rHour);
context.drawImage(hourImg, -10, -130, 20, 130);
context.restore();
}
function showTime() {
var d = new Date();
var hour = d.getHours();
var min = d.getMinutes();
var sec = d.getSeconds();
rSec = (6 * sec) * (Math.PI / 180);
rMin = (6 * min) * (Math.PI / 180) + (6 * rSec / 360);
rHour = (30 * hour) * (Math.PI / 180) + (30 * rMin / 360);
drawCanvas();
log(hour + "시 " + min + "분 " + sec + "초")
}
function log(msg) {
dig.innerHTML = msg;
}
</script>
</head>
<body>
<div align="center">
<canvas id="myCanvas" width="300" height="300"></canvas>
<p font‐size="50px">현재시각</p>
<div id="digital" style="width: 300px; border: 2px solid red; font‐size: 30px"></div>
</div>
</body>
</html>
12
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>Insert title here</title>
<script type="text/javascript">
//HTML5 Geolocation //모바일 활용을 위해서 만들어짐, 컴퓨터는 네트워크를 통해서 geo를 받아옴
var result;
window.onload= function(){
result = document.getElementById('result');
if(navigator.geolocation){
//result.innerHTML = 'Geolocation 지원';
//컴퓨터의 geo정보를 가져오는데 시간이 걸리기때문에 callback - 함수 호출기법 사용
navigator.geolocation.getCurrentPosition(showPosition);
/* navigator.geolocation.getCurrentPosition(function(){
alert('showPosition 호출')
}); */
}else{
result.innerHTML = 'Geolocation 미지원';
}
};
var showPosition = function(position){
alert('showPosition 호출');
var latitude = position.coords.latitude;
var longitude = position.coords.longitude;
var msg = '위도 : '+latitude + '/ 경도 : ' + longitude;
result.innerHTML=msg;
};
</script>
</head>
<body>
<div id='result'></div>
</body>
</html>
13
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>Insert title here</title>
<script type="text/javascript">
//HTML5 Geolocation //모바일 활용을 위해서 만들어짐, 컴퓨터는 네트워크를 통해서 geo를 받아옴
var result;
window.onload= function(){
result = document.getElementById('result');
if(navigator.geolocation){
//getCurrentPosition(정상출력, 비정상일때 출력)
navigator.geolocation.getCurrentPosition(showPosition, showError);
}else{
result.innerHTML = 'Geolocation 미지원';
}
};
var showPosition = function(position){
var latitude = position.coords.latitude;
var longitude = position.coords.longitude;
var msg = '위도 : '+latitude + '/ 경도 : ' + longitude;
result.innerHTML=msg;
};
//에러 처리
var showError = function(error) {
switch(error.code) {
case error.PERMISSION_DENIED:
result.innerHTML = "User denied the request for Geolocation."
break;
case error.POSITION_UNAVAILABLE:
result.innerHTML = "Location information is unavailable."
break;
case error.TIMEOUT:
result.innerHTML = "The request to get user location timed out."
break;
case error.UNKNOWN_ERROR:
result.innerHTML = "An unknown error occurred."
break;
}
}
</script>
</head>
<body>
<div id='result'></div>
</body>
</html>

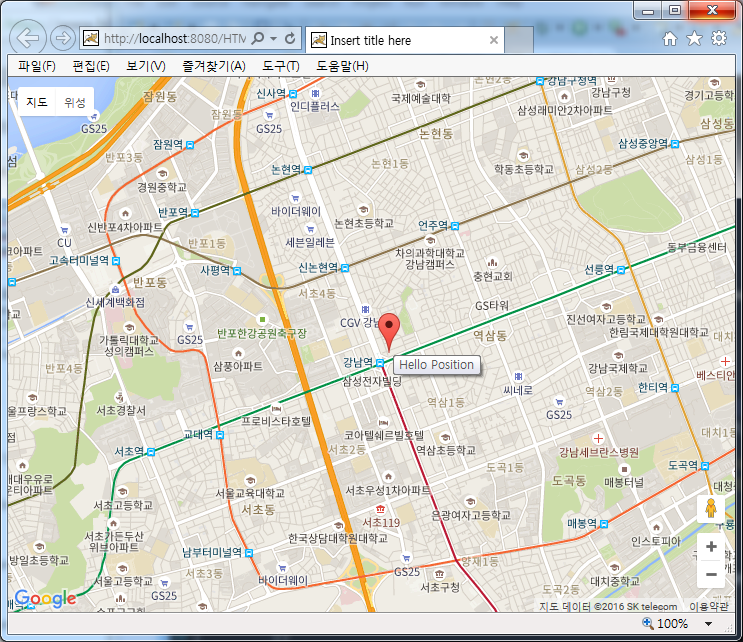

14. 자바스크립트로 구글지도 api 불러오기
구글에서 api key를 받아야함
https://developers.google.com/maps/documentation/javascript/?hl=ko
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>Insert title here</title>
<style type="text/css">
* {margin: 0; padding: 0;}
html, body{ height:100%;}
#map {height: 100%;}
</style>
<!-- 구글 지도 자바스크립트 라이브러리 가져옴 -->
<script type="text/javascript" src="http://maps.google.com/maps/api/js?key=구글제공개인KEY&sensor=false"></script>
<script type="text/javascript">
window.onload = function(){
var element = document.getElementById('map');
//맵 표시
var map = new google.maps.Map(element,{
zoom: 14,
center: new google.maps.LatLng(37.49865608828099,127.02834066144196),
mapTypeId: google.maps.MapTypeId.ROADMAP
//mapTypeId: google.maps.MapTypeId.SATELLITE //위성
//mapTypeId: google.maps.MapTypeId.HYBRID //로드맵 + 위성
});
//위치 표시
new google.maps.Marker({
position: new google.maps.LatLng(37.49865608828099,127.02834066144196),
map: map,
title: 'Hello Position'
})
}
</script>
</head>
<body>
<div id="map"></div>
</body>
</html>
15
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>Insert title here</title>
<style type="text/css">
* {margin: 0; padding: 0;}
html, body{ height:100%;}
#map {height: 100%;}
</style>
<!-- 구글 지도 자바스크립트 라이브러리 가져옴 -->
<script type="text/javascript" src="http://maps.google.com/maps/api/js?key=구글제공API키&sensor=false"></script>
<script type="text/javascript">
window.onload = function(){
var element = document.getElementById('map');
//현재위치 확인
navigator.geolocation.getCurrentPosition(function(position){
var latitude = position.coords.latitude;
var longitude = position.coords.longitude;
//맵 표시
var map = new google.maps.Map(element,{
zoom: 14,
center: new google.maps.LatLng(latitude,longitude),
mapTypeId: google.maps.MapTypeId.ROADMAP
});
//위치 표시
new google.maps.Marker({
position: new google.maps.LatLng(latitude,longitude),
map: map
});
}, function(error){
alert('error');
});
};
</script>
</head>
<body>
<div id="map"></div>
</body>
</html>
16
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>Insert title here</title>
<style type="text/css">
#target { width: 350px; height: 70px; padding: 10px; border: 1px solid black; }
</style>
<script type="text/javascript">
var allowDrop=function(e){
//dragover 대한 기본 이벤트 제거
e.preventDefault();
};
var drag = function(e){
//img - html 태그 - id값
e.dataTransfer.setData('text', e.target.id);
};
var drop = function(e){
e.preventDefault();
var data = e.dataTransfer.getData('text');
e.target.appendChild(document.getElementById(data));
};
</script>
</head>
<body>
<!-- 드롭했을때, 드롭완료시 이벤트 검 -->
<div id="target" ondrop="drop(event)" ondragover="allowDrop(event)"></div>
<br />
<!-- 이미지를 드레그 가능하게 만듦, 드레그를 시작할 떄 이벤트검 -->
<img src="./images/img_logo.gif" width="336" height="69" id="drag1" draggable="true" ondragstart="drag(event)"/>
</body>
</html>
17
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>Insert title here</title>
<style type="text/css">
#div1, #div2
{float:left; width:100px; height:35px; margin:10px;padding:10px;border:1px solid #aaaaaa;}
</style>
<script type="text/javascript">
function allowDrop(ev) {
ev.preventDefault();
}
function drag(ev) {
ev.dataTransfer.setData("text", ev.target.id);
}
function drop(ev) {
ev.preventDefault();
var data = ev.dataTransfer.getData("text");
ev.target.appendChild(document.getElementById(data));
}
</script>
</head>
<body>
<div id="div1" ondrop="drop(event)" ondragover="allowDrop(event)">
<img src="./images/img_logo.gif" draggable="true" ondragstart="drag(event)" id="drag1" width="88" height="31">
</div>
<div id="div2" ondrop="drop(event)" ondragover="allowDrop(event)"></div>
</body>
</html>
18
사용자의 데이터가 모두 날라가는 것을 막기 위한 저장장치
- cookie : 클라이언트에게 노출되는 문제가 있음
- localStorage
- sessionStorage
- 데이터베이스
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>Insert title here</title>
<script type="text/javascript">
var date = new Date();
//7일동안 보관후 없어짐
date.setDate(date.getDate() + 7);
var willCookie = '';
willCookie += 'CookieName = Value;';
willCookie += 'expires=' +date.toUTCString;
//쿠키저장
document.cookie = willCookie;
</script>
</head>
<body>
</body>
</html><!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>Insert title here</title>
</head>
<body>
<script type="text/javascript">
alert('쿠키 :' + document.cookie);
</script>
</body>
</html>
19
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>Insert title here</title>
<script type="text/javascript">
window.onload= function(){
var result1 = document.getElementById('result1');
var result2 = document.getElementById('result2');
if(window.localStorage){
//영구저장소 //개발자 도구에서 지우지 않는한 계속 남아 있음
result1.innerHTML = 'localStorage 지원';
}
if(window.sessionStorage){
//임시저장소 //브라우저를 껐다가 키면 지워짐
result2.innerHTML = 'sessionStorage 지원';
}
document.getElementById('btn11').onclick = function(){
localStorage.key1 = '값1'; //값을 로컬저장소에 저장
}
document.getElementById('btn12').onclick = function(){
result1.innerHTML = 'key1 : '+ localStorage.key1;
}
document.getElementById('btn21').onclick = function(){
sessionStorage.key1 = '값2'; //값을 세션저장소에 저장
}
document.getElementById('btn22').onclick = function(){
result2.innerHTML = 'key1 : '+ sessionStorage.key1;
}
}
</script>
</head>
<body>
<button id="btn11">localStorage 쓰기</button>
<button id="btn12">localStorage 읽기</button>
<button id="btn21">sessionStorage 쓰기</button>
<button id="btn22">sessionStorage 읽기</button>
<hr />
<div id='result1'></div>
<div id='result2'></div>
</body>
</html>
